Swiss-Shield® EVOLUTION™ 屏蔽布

Swiss-Shield® EVOLUTION™ 屏蔽布

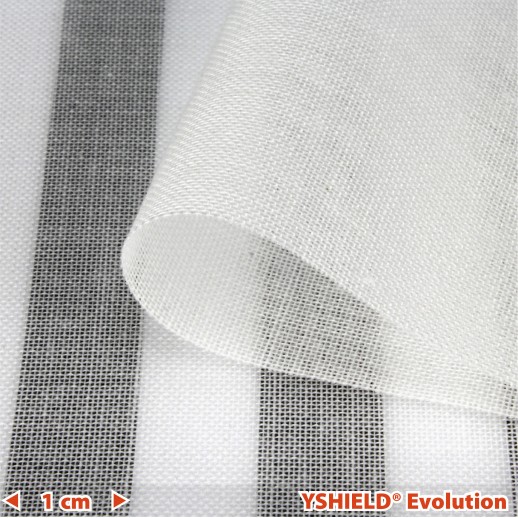

From Swiss Shield®. Semitransparent Trevira fabric as curtain or for canopies. Very crease-resistant. White. 31 dB. Width 250 cm.


PDF: Laboratory report screening attenuation

PDF: Expert report screening attenuation


Order quantity: From 1 running meter in steps of 0.1 running meters. Will be cut off according to customer’s requirements, no right of withdrawal. Request a free sample before ordering.


Properties

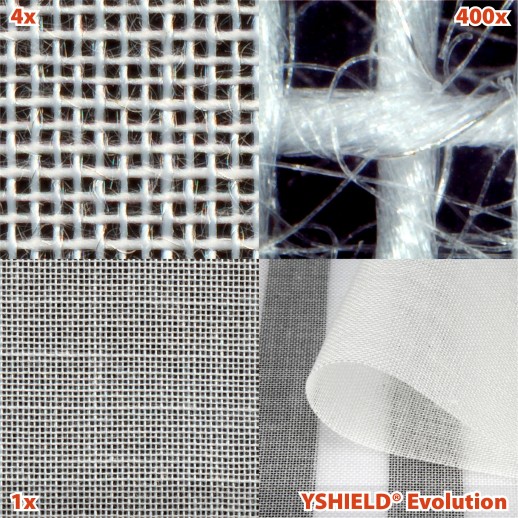

EVOLUTION™ from Swiss-Shield® is a semi-transparent Trevira® fabric for the shielding of high-frequency electromagnetic fields (HF). Typical application as curtain. Not electrically conductive.

  • Crease resistant Trevira®-polyester
  • Textile characteristics: Washable, easy to iron and process
  • Quality grade: Very high


Swiss Shield® Shielding fabrics

This fabric is manufactured by Swiss Shield® in Switzerland with a patented, invisible high-tech yarn. At YSHIELD we value the constantly high quality of the fabrics - it's not for nothing that we are the world´s largest Swiss Shield® distributor.


Technical data

  • Width: 250 cm, +/- 2 cm
  • Length: Available by the meter
  • Attenuation: 31 dB
  • Color: White
  • Raw materials: 91 % polyester (Trevira), 8.5 % copper, 0.5 % silver
  • Weight: 80 g/m²
  • Dimension stability: +/- 1 %


Care instructions

  • Gentle cycle at 30°C
  • Iron without steam at degree 1
  • Drying at low temperature
  • No bleaching
  • No chemical dry-cleaning
  • Wash only with our special washing detergent TEXCARE, without enzymes or bleaching agents


Grounding

This product with an electrically isolated surface cannot be contacted or grounded.

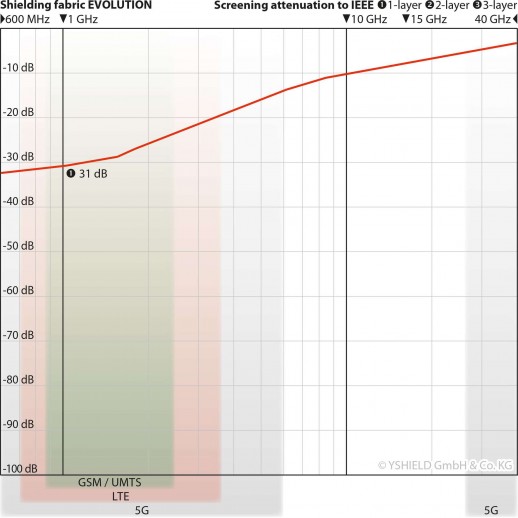

Shielding attenuation HF & LF

This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.

This product contains electrically conductive parts on the inside which can neither be contacted nor grounded. That’s why individual areas do not shield low frequency electrical fields (LF). In case this product is used as a Faraday cage (complete shielding on six sides), there will be no low frequency electrical fields (LF) on the inside, which can be proven with a potential free measurement.


Laboratory & expert report of shielding attenuation up to 40 GHz

We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety. Please find the reports above at the downloads.


  • 型 號: Swiss-Shield® EVOLUTION™
  • 庫存狀態: 有現貨
  • HK$0.00
